Sunday, October 23, 2011

Low Level Animation -- Part 2

Some time ago I wrote an article describing how animation compression is implemented in the BitSquid engine. In that article I made a vague promise that I would follow up with a description of how to pack the data in a cache-friendly way. Now, the time has come to deliver on that vague promise.

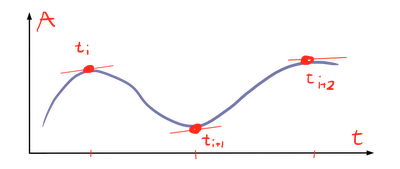

A quick recap: After curve fitting, each track of our animation consists of a number of curve points that describe the curve for each animation track:


By an animation track I mean the animation of a single parameter, typically the position or rotation of a bone.

The data for the track is a sequence of times and curve data:


Here t_i is the time of a curve point and A_i is the corresponding curve data.

To evaluate the curve at any particular point t we need the curve points both before and after the time t


Depending on what curve type you use (hermite, bezier, b-spline, etc) you might actually need more than two curve points to evaluate a segment, but that doesn’t really affect the discussion in this article, so for the sake of simplicity, let’s stick with two.

Note that the time points for the different tracks in the animation typically do not match up. For example, one curve may be completely flat and only require one sample at the start and one sample at the end. Another curve may be complicated and require lots of samples.

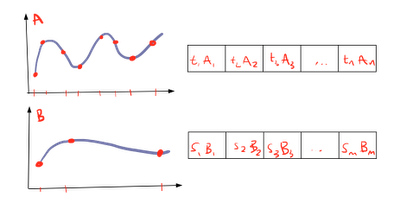

To simplify the discussion further, assume that the animation only contains two tracks (it is easy to generalize the solution to more tracks). We will call the curve points of one (t_i, A_i) and the curve points of the other (s_i, B_i):


How can we organize this data to be as cache friendly as possible?

The most natural approach is perhaps to sort the data first by track and then by time. Let’s see what this means for the cache. To evaluate the animation for some particular time t, we have to go into the data for each track at that time to look up the two neighboring curve points. Let’s assume that we have somehow cached our current position in each track, so that we don’t have to search for it, we will still have at least one cache miss for each track. A modern character can have over 100 bones, with two tracks per bone. That’s 200 cache misses for just a single frame of a single animation.

To do better, we need to organize the data by time somehow. But it is not immediately clear how. Just sorting the data by time won’t help, because then a flat curve with just two curve points, one at the beginning and one at the end, will have them at complete opposite ends of the data and no matter what we do we will get cache misses when touching them.

Let’s consider all the data we need to evaluate the tracks at time t. We need (t_i, A_i), (t_i+1, A_i+1) and (s_j, B_j), (s_j+1, B_j+1) where t_i <= t <= t_i+1 and s_j <= t <= s_j+1. This is our ”hot” data, because we will need to refer to it several times as we evaluate the curve at different points in time. In fact, we can keep using this same data until we reach whichever is smallest of t_i+1 and s_j+1. A general rule in memory access optimization is to keep the ”hot” data together, so let’s create an additional data structure, an array with the currently active curve points for a playing animation instance.


Now we’re getting somewhere. Not only have we significantly improved the cache behavior; as long as we don’t need to fetch new curve points we only need to refer to the active array, a single memory access. We have also decomposed our animation evaluation problem into two simpler tasks: evaluating curves and fetching new curve points. This makes our code both simpler and more flexible.

Let’s look at the second issue, fetching new curve points. In the example above, when we reach the time t_i+1 we will need to fetch the new curve point (t_i+2, A_i+2) and when we reach the time s_j+1 we will need to fetch (s_j+2, B_j+2).

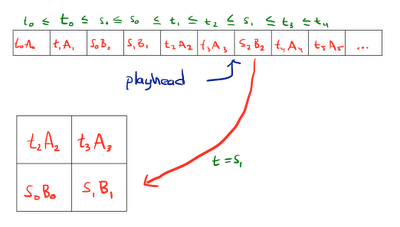

Generalizing, we always need to fetch the point (t_i, A_i) at the time t_i-1, and we always need to fetch the point (s_i, B_i) at the time s_i-1. This is excellent, because since we now the time when each of our curve points will be needed we can put them all in a single stream of data which is sorted by the time when they will be needed.


This means that our animation player only needs to keep a single pointer into the animation stream. That pointer will always point to the next curve point that needs to be moved to the active list. As time is advanced, curve points are copied from the animation data into the active list and then the curve is evaluated.


Note the excellent cache behavior this gives us. To fetch new curve points, we just move a pointer forward in memory. And then, to evaluate the curves, we just need to access our active array, a single continuous memory block. This gives us a grand total of just two memory accesses.

Another nice property is that since we are now accessing the animation data as a stream (strictly linearly, from beginning to end) we can gzip it and get another factor two of compression. We can also easily stream it from disk.

One drawback of this system is that it only supports playing an animation forward, you cannot jump to a particular time in an animation without ”fast forwarding” through all intermediate curve points.

If you need support for jumping, the easiest way to achieve it is perhaps to add a separate index with jump frames. A jump frame consists of the state of the active array at some point in time, together with an offset into the data stream. In other words, all the state information that the animation player needs to jump to that time point and resume playing.

Using jump frames let’s you balance performance and memory use. If you add more jump frames you will use more memory but on the other hand, you will be able to find a jump frame closer to the time you actually want to go to which means less fast forwarding.

Saturday, October 8, 2011

Caring by Sharing: Header Hero


Compile times get worse over time, that is the second law of C++ programming dynamics. There are many small day-to-day changes that each exacerbate the problem slightly: The project grows. New header files get included. Clever templates get written. And so on. There are comparatively few forces that work in the other direction. Once an #include has been added, it stays.

The only exception is when some hero steps up, says Enough! and starts to crunch down on those header files. It is thankless menial work that offers few rewards, save the knowledge that you are contributing to the public good.

Today, I want to give something back to these unsung heroes, so I’ve made a small tool to make their drudgery a bit less... drudgery-ish? It is called Header Hero:


To run Header Hero you specify the directories where your .cpp files can be found as well as the directories to search for included headers. The program scans your .h and .cpp files to find all the include links. It presents the result in a summarized report that shows you what the worst headers are. You can think of it as a header file profiler.

You don’t need to specify all your include directories, but only the ones you have specified will be scanned.

I’ve focused on making the tool fast by caching as much information as possible and using a simple parser that just looks for #include patterns rather than running the real C preprocessor. The downside is that if you are using any fancy preprocessor tricks, they will most likely be missed. On the other hand, the tool can scan a huge project in seconds. And after the initial scan, new scans can be done in a fraction of that time.

The program produces a report that looks something like this:


At the top are some statistics, such as the total number of files and lines in the project. Total Parsed counts how many lines that would actually be parsed in a full recompile of the project. So, a header that is included by several .cpp files adds to that number every time. The Blowup Factor are the last two items divided. It specifies how many times, on average, each line gets parsed. A value of 35 means that on average, each line in our project is parsed 35 times. That seems quite a lot.

Below the summary are a list of the header files sorted by how many lines they contributed to the Total Parsed number. In other words, the size of that file multiplied by the number of times it was included.

Looking at the sample report above, it seems pretty reasonable. At the top we find big templated collection classes (map, set, string, vector) that have big header files and are used in a lot of places. Math (matrix4x4, vector3) and utility (critical_section, file_system) files also end up high on the list.

But when you dig into it, there are also things that seem a bit fishy. Set<T> is not a very popular collection class. Sets are used less than maps, and HashSet is usually preferable to Set. Why does it end up so high on the list? What is shader.h doing there? That seems too specialized to end up so high. And file_system.h? There shouldn’t be that much code that directly accesses the file system, only the resource loader needs to do that.

To answer those questions, you can click on any file in the report to get a detailed view of its relations:


In the middle we find the file we are looking at. To the left are the files that directly include it. The number after each file name specifies how many files that directly or indirectly include that file. To the right are the files included by the file. The numbers are all the files directly or indirectly included by those files. You can double click on any file name in the view to refocus on it.

Here we clearly see that the main culprit is data_compiler.h. It includes set.h and is in turn included by 316 other files. To fix the compile times we can make data_compiler.h not include set.h or we can try to reduce the number of files that include data_compiler.h (that number also seems high). If we also fix scene_graph.h we can really make a difference.

Breaking dependencies is a whole topic in itself, especially when it comes to templates and inlined code. Here are some quick tips though:

1) Predeclare the structs and classes that you use instead of including the header file. Don’t forget that you can predeclare templates and typedefs as well as regular classes:

class MyClass;
typedef int Id;
template <class T> class Vector;

2) Predeclared types can only be used as pointers and references. You can’t have a member variable of a type whose actual size is unknown. So you may have to change your member variables to pointers in order to get rid of the header dependency. You can also use the pimpl idiom, if you can live with the extra indirection and lack of inlining.

3) Switching from in-place variables to pointers can lead to bad memory access patterns. One way of fixing that is to placement new the object directly into a raw memory buffer.

// a.h

class B;

class A {
    A();
    B *_b;
    static const int SIZE_OF_B = 20;
    char _b_storage[SIZE_OF_B];
};

// a.cpp

#include ”b.h”

A::A()
{
    XASSERT(sizeof(B) == SIZE_OF_B);
    _b = new (_b_storage) B();
}

With this technique, you get the data for B stored inside A, without having to include the b.h header in a.h. But the code isn’t exactly easy to read, so you should only use this in desperate situations.

4) For files with small type definitions, but lots of inlined methods (e.g., matrix4x4.h), a good strategy is to split the file, so you have just the type in one file and all the methods in the other. Header files can then include just the type definition, while .cpp files pull in the whole shebang.

Using these techniques you can get rid of the header dependencies one by one, until you are back at reasonable compile times. Since a rescan takes just a fraction of a second it is easy to see how your changes affect the compile time. Just make sure you have your integration test running, it is easy to break build configurations when you are fiddling around with the headers.

Here is the result of about a day and a half of header optimization in our code base:


From 6 million to 4.3 million lines, that’s not too shabby. We can now do a complete rebuild in 37 seconds on a reasonably modern machine. With this tool we can hopefully keep that number.

You can download the C# source code here. Feel free to do whatever you like with it:
